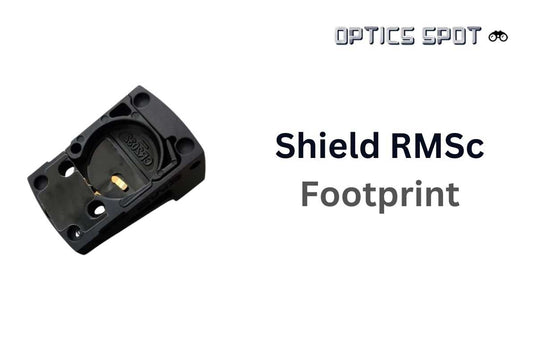

Shield Padrão de pegada RMSc

Shield RMSc footprint standard

Qual miras red dot você poderá montar no suporte com RMSc ou Shield RMSc? Você poderá instalar o Sig Sauer Romeo Zero na mesma placa que Shield RMSc? Cobrimos a compatibilidade completa da pegada RMSc Shield neste artigo.

Compatibilidade de pegada explicada

O que significa "pegada"? O termo pegada refere-se à estrutura dos encaixes e furos de parafuso na base do dispositivo óptico.

E o que significa se as pegadas são compatíveis?

Cada mira óptica tem uma base para montagem. A base consiste em pinos em várias posições e furos para parafusos usados para fixação da mira nos suportes. Se dois miras usam a mesma base para montagem, dizemos que eles compartilham a mesma pegada.

Neste artigo mostramos quais mira red dot miras compartilham a mesma pegada.

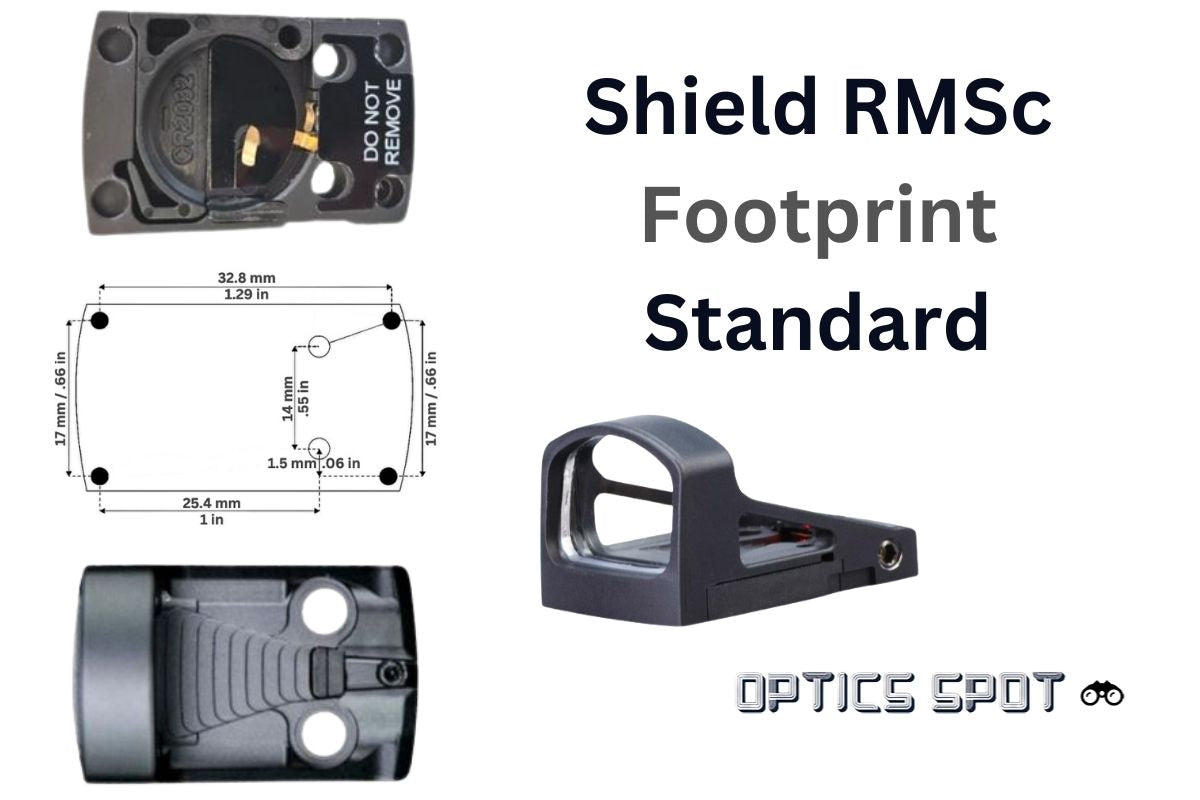

Padrão de pegada RMSc Shield

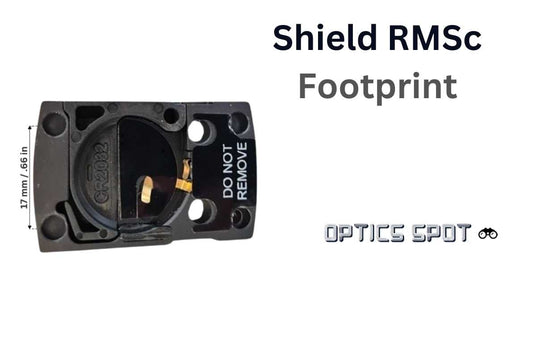

A pegada RMSc Shield consiste em quatro encaixes nos cantos da mira e dois furos de parafuso na parte traseira da mira.

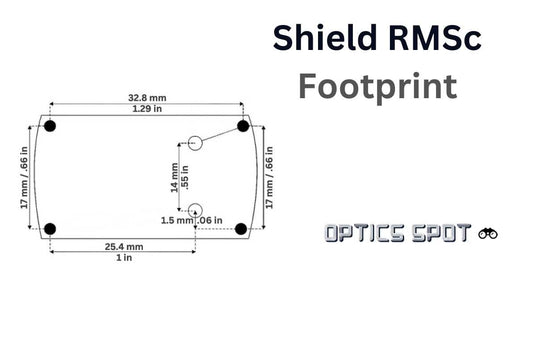

Os encaixes frontais, bem como os traseiros, estão a 17mm / 0,66 polegadas de distância um do outro. Da parte traseira para os encaixes frontais, a distância é de 32,8mm / 1,29 polegadas. A posição desses quatro encaixes corresponde à posição dos pinos que estão em uma superfície de montagem de qualquer suporte para este padrão.

Os furos de parafuso estão posicionados na parte traseira do dispositivo óptico. Eles funcionam para fixação da mira nos suportes. Estes dois furos de parafuso estão a 14mm / 0,55 polegadas de distância um do outro.

Os parafusos a serem usados para esses furos de parafuso estão sempre incluídos no pacote com a mira.

miras red dot Compatíveis

A pegada RMSc é compartilhada por muitos outros fabricantes no mercado.

Abaixo você pode encontrar a lista completa de mira red dot miras que funcionarão com a pegada RMSc Shield.

Shield RMSc standard

Miras red dot com pegada RMSc de Shield

Ver tudo

Como montar mira red dot com pegada RMSc Shield

Depende de qual dispositivo você deseja montar.

Outros padrões de pegada

Existem muitas bases diferentes para mira red dot miras, mas as outras mais comuns são as seguintes:
